Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
ConnectableNo
Diameter-mm
Provided with revolving ringNo
Internal depth-mm
Suitable for wall/board thicknessmm
For number of electric fittings-
Pipe locking optionalNo
Suitable for cable diameter- - -mm
Pipe lockingNo
Inlet from the rearNo
Number of non-adjustable device fixing lugs-
Number of adjustable device fixing lugs-
Number of included spouts-
Transparent coverNo
Clamp position fixedNo
Air tightNo
With screeningNo
Luminaire hook mountingNo
Max. conductor cross section-mm²
With partition panelNo
Compliant with BS 4662No
Number of poles of the clamp-
SealableNo
ShapeOval
Housing feed-through by nozzleNo
With screwsNo
Depth45 - 45mm
Number of inlets4
Housing feed-through by step membraneNo
Length68mm
Mounting switching equipmentScrewing
Width38mm
ModelDouble
For tube diameter20/25 mm
Housing feed-through by seal membraneYes
Construction typeOther
Housing feed-through by break-out openingNo
Halogen freeYes
ColourOrange
MaterialPlastic
Degree of protection (IP)IP30
Cover attachmentSnapped on
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

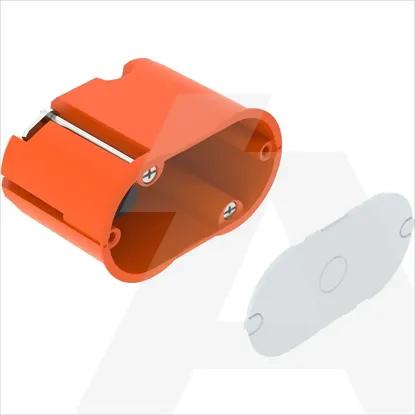

2003834 | HG 45-WAD-LD
