Details
- •Industrial socket/plug applications

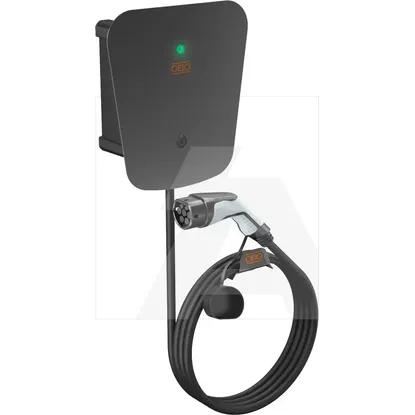

- •Charging device E-Mobility
- •1 KOM
- •OBO
Technical specifications
Max. power per charging point22kW
Installation side connection model3-phase
Nominal connection power22kW
Input voltageV
Output voltage at DCV
Number of charging units1
Max. output current DC-A
Width300mm
Mounting methodWall mounting
Number of vehicle connectors Type 2 CCS0
Height330mm
Number of vehicle connectors Type 10
Depth127mm
Number of vehicle connectors Type 1 CCS0
Number of vehicle connectors Type 21
Number of socket outlets Type 20
Number of vehicle connectors GB DC0
Number of vehicle connectors GB AC0
Number of socket outlets Type 30
Number of CEE socket outlets0
Number of socket outlets GB0
Number of vehicle connectors CHAdeMO0
Number of earth leakage circuit breakers type A0
Number of household socket outlets0
Length of charging cable-m
Number of earth leakage circuit breakers type B0
Contactor welding detectionNo
With house connection boxNo
With circuit breakerNo
Networkable via LANNo
Network-enabled as a masterNo
Charging cable lockable at charging deviceNo
DC residual current detectionNo
Network-enabled as an extenderNo
Long-Term Evolution (LTE)No
Networkable via Wi-FiNo
With energy meterNo
Radio standard 5GNo
With built-in RFID card readerNo
With key switchNo
Static load management integratedNo
NFC (Near Field Communication)No
Suitable for dynamic load managementNo
Material housingPlastic
Impact strengthIK08
Compatible with Apple HomeKitNo
With displayNo
Compatible with Google AssistantNo
Operation and configuration by appNo
IFTTT support availableNo
Degree of protection (IP)IP66
Plug and charge (ISO 15118)No
Connectable conductor cross sectionmm²
Export of charging logsNo
Compatible with Amazon AlexaNo
Integrated backendNo
Calibration law compliantNo
With MID compliant energy meterNo
