Details
- •Low-voltage industrial components
- •Contactor relay
- •1 KOM
- •ABB
Technical specifications
Rated control supply voltage Us at AC 60HZ24 - 60V
Rated control supply voltage Us at AC 50HZ24 - 60V
Rated control supply voltage Us at DC20 - 60V
Voltage type for actuatingAC/DC
With LED indicationNo
Rated operation current3A
Mounting methodDIN-rail/screw
Rated operation current Ie, 400 V3A
Suitable for manual operationNo
InterfaceNo
Number of auxiliary contacts as normally closed contact2
Number of auxiliary contacts as normally open contact2
Number of auxiliary contacts as normally closed contact, delayed switching0
Number of auxiliary contacts as normally open contact, leading0
Number of auxiliary contacts as change-over contact0
Operating voltage at AC 60 Hz690 - 690V
Operating voltage at AC 50 Hz690 - 690V
Operating voltage at DC6 - 6V
Rated switch current-A
Height86mm
Width45mm
Connection type auxiliary circuitScrew connection
Depth86mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

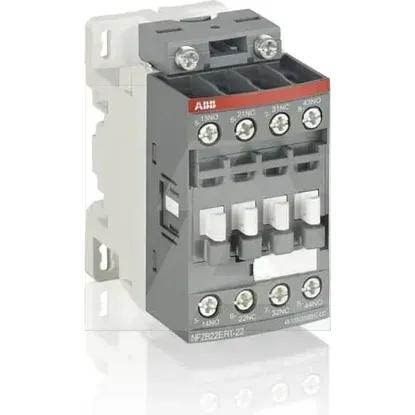

NFZB22ERT-21 | 24-60V50/60HZ 20-60VDC Contactor Relay
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Contactor relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated control supply voltage Us at AC 60HZ
24 .. 60V
Rated control supply voltage Us at AC 50HZ
24 .. 60V
Rated control supply voltage Us at DC
20 .. 60V
Voltage type for actuating
AC/DC
With LED indication
Rated operation current
3A
Mounting method
DIN-rail/screw
Rated operation current Ie, 400 V
3A
Suitable for manual operation
Interface
Number of auxiliary contacts as normally closed contact
2
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as normally closed contact, delayed switching
0
Number of auxiliary contacts as normally open contact, leading
0
Number of auxiliary contacts as change-over contact
0
Operating voltage at AC 60 Hz
690 .. 690V
Operating voltage at AC 50 Hz
690 .. 690V
Operating voltage at DC
6 .. 6V
Rated switch current
-A
Height
86mm
Width
45mm
Connection type auxiliary circuit
Screw connection
Depth
86mm
