Details
- •Luminaires
- •Ceiling-/wall luminaire
- •1 KOM
- •GEWISS
Technical specifications
Suitable for wall mountingYes
Suitable for suspended mountingNo
Suitable for ceiling mountingNo
Lamp typeLED not exchangeable
Lamp holderOther
Suitable for workplace according to EN 12464-1No
Material housingAluminium
Type of gridNone
Nominal voltage220 - 240V
With light sourceYes
Suitable for number of lamps1
With control gearYes
Suitable for light line configurationNo
Suitable for surface mountingNo
Dimming LineSwitchNo
Dimming DALINo
Voltage typeAC
Dimming DSINo
Type of control gearLED operating device current-controlled
Suitable for built-in mountingNo
Dimming GPRSNo
Dimming 0-10 VNo
Colour housingAnthracite
Dimming manufacturer's proprietary systemNo
Dimming phase cut-onNo
Material coverGlass opal
Dimming RFNo
Dimming DMXNo
Dimming 1-10 VNo
Dimming with push-buttonNo
Dimming depending on control gearNo
Dimming mains voltage modulationNo
No dim functionYes
Light sharingAsymmetric
Dimming potentiometer (integrated)No
Dimming Touch and DimNo
Degree of protection (IP)IP65
Dimming Sine Wave ReductionNo
Dimming phase cut-offNo
Light outletDirect/indirect
Protection classI
Energy efficiency class of the built-in lampA++, A+, A (LED)
Luminaire with limited surface temperature, sign "D“No
Rated ambient temperature according to IEC62722-2-1-10 - 30°C
Suitable for emergency lightingNo
Rated life time L80/B10 at 25 °C60000h
Dimming ZigbeeNo
Beam angleWide beam 41-80°
With movement sensorNo
Impact strengthIK06
Dimming programmableNo
With light sensorNo
Covering of the luminaire with thermally insulating material possibleNo
With air slotsNo
Filament test according to IEC 60695-2-11None
Suitable for lamp power10 - 10W
Max. system power10W
Colour of lightWhite
Rated luminous flux according to IEC 62722-2-1880lm
Colour rendering index CRI80-89

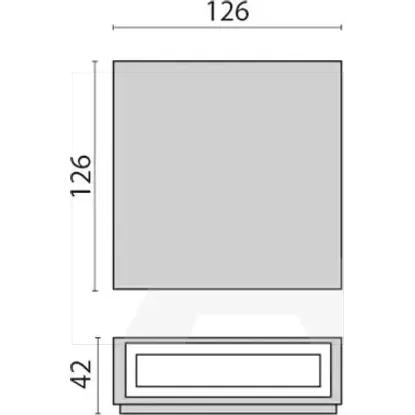

Width126mm
Colour temperature3000 - 3000K
Height/depth126mm
Length42mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
P304829 | Mimik 10 Flat BI 10W 3000K AN96
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Ceiling-/wall luminaire
- 1 KOM
- GEWISS
DetailsTechnical specifications
Technical specifications
Suitable for wall mounting
Suitable for suspended mounting
Suitable for ceiling mounting
Lamp type
LED not exchangeable
Lamp holder
Other
Suitable for workplace according to EN 12464-1
Material housing
Aluminium
Type of grid
None
Nominal voltage
220 .. 240V
With light source
Suitable for number of lamps
1
With control gear
Suitable for light line configuration
Suitable for surface mounting
Dimming LineSwitch
Dimming DALI
Voltage type
AC
Dimming DSI
Type of control gear
LED operating device current-controlled
Suitable for built-in mounting
Dimming GPRS
Dimming 0-10 V
Colour housing
Anthracite
Dimming manufacturer's proprietary system
Dimming phase cut-on
Material cover
Glass opal
Dimming RF
Dimming DMX
Dimming 1-10 V
Dimming with push-button
Dimming depending on control gear
Dimming mains voltage modulation
No dim function
Light sharing
Asymmetric
Dimming potentiometer (integrated)
Dimming Touch and Dim
Degree of protection (IP)
IP65
Dimming Sine Wave Reduction
Dimming phase cut-off
Light outlet
Direct/indirect
Protection class
I
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Luminaire with limited surface temperature, sign "D“
Rated ambient temperature according to IEC62722-2-1
-10 .. 30°C
Suitable for emergency lighting
Rated life time L80/B10 at 25 °C
60000h
Dimming Zigbee
Beam angle
Wide beam 41-80°
With movement sensor
Impact strength
IK06
Dimming programmable
With light sensor
Covering of the luminaire with thermally insulating material possible
With air slots
Filament test according to IEC 60695-2-11
None
Suitable for lamp power
10 .. 10W
Max. system power
10W
Colour of light
White
Rated luminous flux according to IEC 62722-2-1
880lm
Colour rendering index CRI
80-89
Width
126mm
Colour temperature
3000 .. 3000K
Height/depth
126mm
Length
42mm
