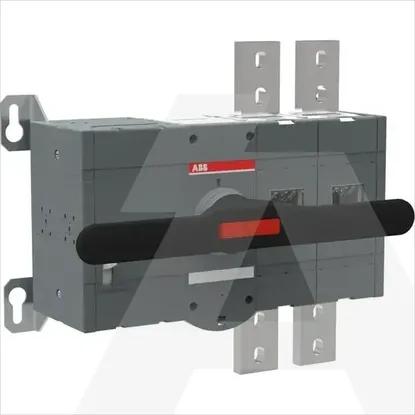

1SCA119470R1001 | OTM1600E2M230V
Code: 2069359
ManufacturerABB
Catalog number1SCA119470R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019510460
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as main switchYes
Version as maintenance-/service switchNo
Number of switches1
Rated operating voltage1000 - 1000V
Rated short-time withstand current lcw50kA
Version as reversing switchNo
Rated permanent current Iu1600A
Max. rated operation voltage Ue AC1000V
Rated operation power at AC-3, 400 V-kW
Version as safety switchNo
Rated permanent current at AC-21, 400 V1600A
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V710kW
Number of poles2
Switching power at 400 V710kW
Rated permanent current at AC-23, 400 V1250A
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally closed contact0
Motor drive optionalNo
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Voltage release optionalNo
Number of auxiliary contacts as normally open contact0
Device constructionComplete device in housing
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for floor mountingNo
Colour control elementBlack
Type of control elementOther
Degree of protection (IP), front sideIP00
InterlockableNo
Suitable for intermediate mountingNo
With pre-assembled cablingNo
Suitable for front mounting 4-holeYes
Degree of protection (NEMA)Other
Width426.5mm
Type of electrical connection of main circuitBolt connection
Height372mm
Depth153mm
Width in number of modular spacings-
