Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
Rated permanent current Iu2000A
Overload release current setting800 - 2000A
Rated voltage600 - 600V
Adjustment range undelayed short-circuit release3000 - 24000A
Adjustment range short-term delayed short-circuit release1200 - 20000A
Type of electrical connection of main circuitBolt connection
Power loss46W
Integrated earth fault protectionNo
Device constructionBuilt-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorNo
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
Number of poles3
Position of connection for main current circuitFront side
Type of control elementToggle
Motor drive integratedNo
Motor drive optionalYes
Complete device with protection unitYes
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

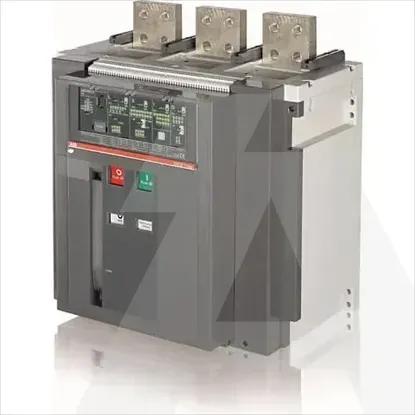

1SDA065877R1 | T8V2000ULPR331/PLSIGIn=2000A3pFF
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
-kA
Rated permanent current Iu
2000A
Overload release current setting
800 .. 2000A
Rated voltage
600 .. 600V
Adjustment range undelayed short-circuit release
3000 .. 24000A
Adjustment range short-term delayed short-circuit release
1200 .. 20000A
Type of electrical connection of main circuit
Bolt connection
Power loss
46W
Integrated earth fault protection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
DIN rail (top hat rail) mounting optional
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
Number of auxiliary contacts as normally open contact
0
With integrated under voltage release
Number of poles
3
Position of connection for main current circuit
Front side
Type of control element
Toggle
Motor drive integrated
Motor drive optional
Complete device with protection unit
Degree of protection (IP)
IP20
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
