Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Overload release current setting- - -A
Adjustment range short-term delayed short-circuit release- - -A
Rated voltage600 - 600V
Rated permanent current Iu2500A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
Adjustment range undelayed short-circuit release- - -A
Power loss73W
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally closed contact0
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally open contact0
With switched-off indicatorNo
Number of auxiliary contacts as change-over contact0
With integrated under voltage releaseNo
Number of poles3
Complete device with protection unitYes
Position of connection for main current circuitFront side
Degree of protection (IP)IP20
Motor drive optionalYes
Motor drive integratedNo
Type of control elementToggle
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

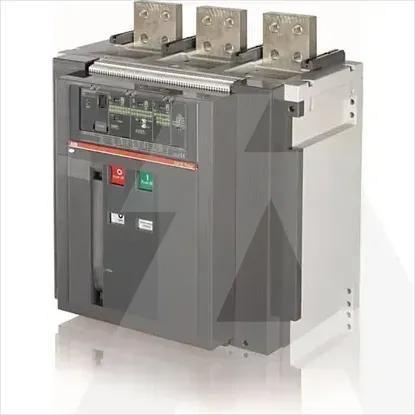

1SDA065886R1 | T8V2500ULPR331/PLSIIn=2500A3pFF
