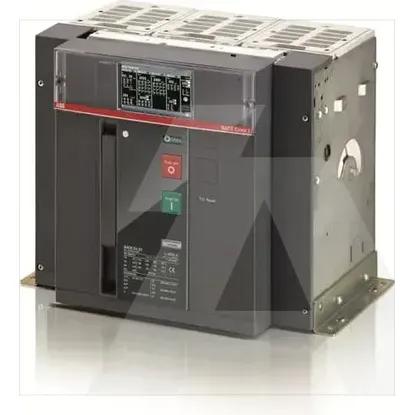

1SDA121114R1 | E4.2H/E123200EkipDipLSI3pFHR
Code: 2070002
ManufacturerABB
Catalog number1SDA121114R1
TypePower circuit-breaker for trafo/generator/installation protection
EAN code8056221157063
Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
Rated permanent current Iu3200A
Rated voltage1200 - 1200V
Overload release current setting1280 - 3200A
Adjustment range short-term delayed short-circuit release1920 - 32000A
Power loss425W
Adjustment range undelayed short-circuit release4800 - 48000A
Integrated earth fault protectionNo
Type of electrical connection of main circuitBolt connection
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as normally open contact0
Device constructionBuilt-in device fixed built-in technique
Number of auxiliary contacts as normally closed contact0
DIN rail (top hat rail) mounting optionalNo
With switched-off indicatorYes
Number of auxiliary contacts as change-over contact4
With integrated under voltage releaseNo
Position of connection for main current circuitBack side
Number of poles3
Complete device with protection unitYes
Type of control elementPush button
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30
