Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Type of electrical connection of main circuitBolt connection
Integrated earth fault protectionNo
Adjustment range undelayed short-circuit release6000.0 - 60000A
Adjustment range short-term delayed short-circuit release2400.0 - 40000A
Rated permanent current Iu4000A
Number of auxiliary contacts as change-over contact4
Number of auxiliary contacts as normally closed contact0
Power loss309W
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
Rated voltage690 - 690V
Overload release current setting1600.0 - 4000A
Device constructionBuilt-in device fixed built-in technique
With switched-off indicatorYes
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
DIN rail (top hat rail) mounting optionalNo
Suitable for DIN rail (top hat rail) mountingNo
Complete device with protection unitYes
Position of connection for main current circuitBack side
Type of control elementPush button
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30
Number of poles4
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

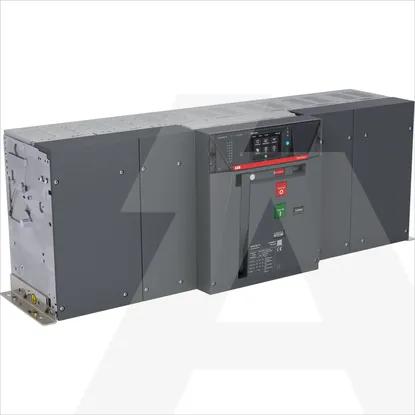

1SDA125265R1 | E6.3X/f4000EkipAwareLSI4pFHR
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Type of electrical connection of main circuit
Bolt connection
Integrated earth fault protection
Adjustment range undelayed short-circuit release
6000.0 .. 60000A
Adjustment range short-term delayed short-circuit release
2400.0 .. 40000A
Rated permanent current Iu
4000A
Number of auxiliary contacts as change-over contact
4
Number of auxiliary contacts as normally closed contact
0
Power loss
309W
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
-kA
Rated voltage
690 .. 690V
Overload release current setting
1600.0 .. 4000A
Device construction
Built-in device fixed built-in technique
With switched-off indicator
Number of auxiliary contacts as normally open contact
0
With integrated under voltage release
DIN rail (top hat rail) mounting optional
Suitable for DIN rail (top hat rail) mounting
Complete device with protection unit
Position of connection for main current circuit
Back side
Type of control element
Push button
Motor drive integrated
Motor drive optional
Degree of protection (IP)
IP30
Number of poles
4
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
