Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz85kA
Overload release current setting1280.0 - 3200A
Rated permanent current Iu3200A
Adjustment range short-term delayed short-circuit release1920.0 - 32000A
Adjustment range undelayed short-circuit release4800.0 - 48000A
Device constructionBuilt-in device fixed built-in technique
Power loss425W
Number of auxiliary contacts as change-over contact4
Integrated earth fault protectionNo
DIN rail (top hat rail) mounting optionalNo
Type of electrical connection of main circuitBolt connection
With switched-off indicatorYes
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
Number of auxiliary contacts as normally closed contact0
Position of connection for main current circuitBack side
Number of poles3
Complete device with protection unitYes
Type of control elementPush button
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

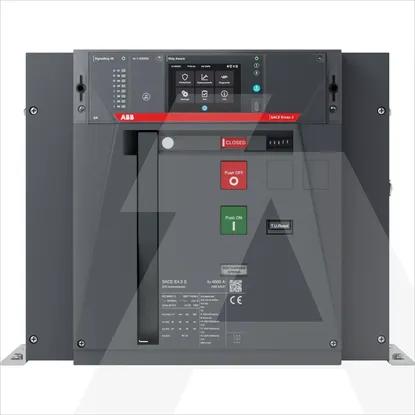

1SDA124903R1 | E4.3S3200EkipAwareLSI3pFHR
