Details

  • •Low-voltage industrial components

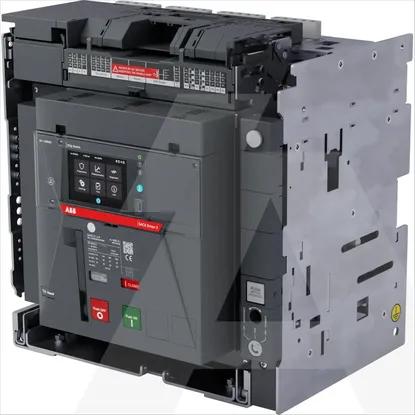

  • •Power circuit-breaker for trafo/generator/installation protection
  • •1 KOM
  • •ABB

Technical specifications

Device constructionBuilt-in device slide-in technique (withdrawable)
Adjustment range undelayed short-circuit release2400 - 24000A
Integrated earth fault protectionNo
Adjustment range short-term delayed short-circuit release- - -A
Rated voltage690 - 690V
Overload release current setting640 - 1600A
Rated permanent current Iu1600A
Power loss400W
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz42kA
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
DIN rail (top hat rail) mounting optionalNo
With integrated under voltage releaseNo
Type of electrical connection of main circuitConnection at separate chassis part
Suitable for DIN rail (top hat rail) mountingNo
With switched-off indicatorYes
Number of auxiliary contacts as change-over contact4
Type of control elementPush button
Motor drive integratedNo
Complete device with protection unitYes
Number of poles4
Position of connection for main current circuitConnection at separate chassis part
Motor drive optionalYes
Degree of protection (IP)IP30
