Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz42kA
Overload release current setting640.0 - 1600A
Power loss288W
Integrated earth fault protectionNo
Adjustment range short-term delayed short-circuit release960.0 - 16000A
Adjustment range undelayed short-circuit release2400.0 - 24000A
Type of electrical connection of main circuitConnection at separate chassis part
Device constructionBuilt-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact4
Rated permanent current Iu1600A
Rated voltage690 - 690V
With switched-off indicatorYes
Number of auxiliary contacts as normally closed contact0
With integrated under voltage releaseNo
Number of poles4
Type of control elementPush button
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30
Complete device with protection unitYes
Position of connection for main current circuitConnection at separate chassis part
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

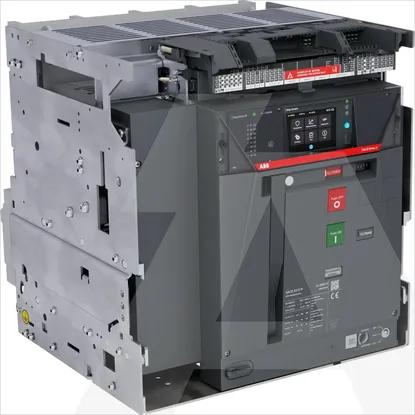

1SDA125694R1 | E2.3B1600EkipAwareLSI4pWMP
