Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu1600A
With switched-off indicatorYes
Overload release current setting640.0 - 1600A
Rated voltage690 - 690V
Suitable for DIN rail (top hat rail) mountingNo
Type of electrical connection of main circuitConnection at separate chassis part
Adjustment range undelayed short-circuit release2400.0 - 24000A
Adjustment range short-term delayed short-circuit release- - -A
Power loss288W
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact4
Integrated earth fault protectionNo
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz66kA
Device constructionBuilt-in device slide-in technique (withdrawable)
DIN rail (top hat rail) mounting optionalNo
Complete device with protection unitYes
Position of connection for main current circuitConnection at separate chassis part
Motor drive optionalYes
Degree of protection (IP)IP30
Number of poles4
Type of control elementPush button
Motor drive integratedNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

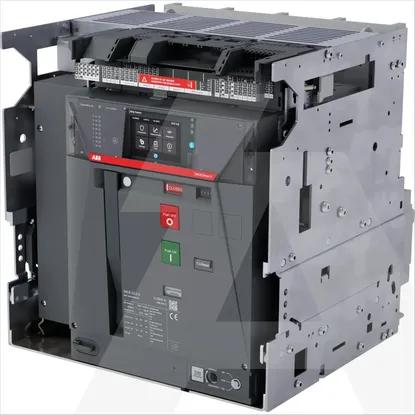

1SDA125698R1 | E2.3N1600EkipAwareLI4pWMP
