Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as main switchYes
Version as safety switchNo
Version as maintenance-/service switchNo
Version as reversing switchNo
Rated permanent current Iu1000A
Number of switches0
Switching power at 400 V-kW
Rated operating voltage690 - 690V
Rated permanent current at AC-23, 400 V1000A
Max. rated operation voltage Ue AC690V
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw85kA
Version as emergency stop installationNo
Rated operation power at AC-3, 400 V-kW
Rated permanent current at AC-21, 400 V1000A
Number of poles4
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Motor drive optionalYes
Number of auxiliary contacts as change-over contact0
Device constructionBuilt-in device fixed built-in technique
Motor drive integratedNo
Suitable for front mounting centreNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Voltage release optionalYes
Suitable for front mounting 4-holeNo
With pre-assembled cablingNo
Colour control elementOther
Type of control elementPush button
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP30
InterlockableYes
Height371mm
Suitable for distribution board installationYes
Degree of protection (NEMA)Other
Width366mm
Depth270mm
Width in number of modular spacings-
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

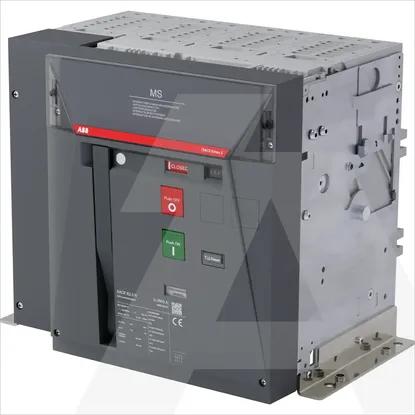

1SDA125938R1 | E2.3H/MS10004pFHR
