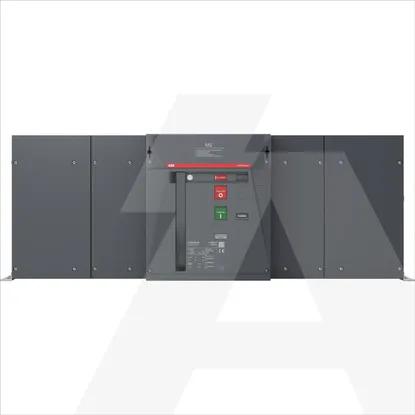

1SDA125959R1 | E6.3H/MS50004pFHR
Code: 2070536
ManufacturerABB
Catalog number1SDA125959R1
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code8056221265119
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Version as main switchYes
Version as safety switchNo
Number of switches0
Version as maintenance-/service switchNo
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
Rated permanent current at AC-21, 400 V5000A
Version as emergency stop installationNo
Rated operating voltage690 - 690V
Rated permanent current Iu5000A
Rated operation power at AC-3, 400 V-kW
Rated operation power at AC-23, 400 V-kW
Switching power at 400 V-kW
Conditioned rated short-circuit current Iq-kA
Rated permanent current at AC-23, 400 V5000A
Rated short-time withstand current lcw100kA
Number of poles4
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Voltage release optionalYes
Number of auxiliary contacts as normally closed contact0
Suitable for floor mountingNo
Motor drive optionalYes
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
Colour control elementOther
Suitable for intermediate mountingNo
InterlockableYes
Type of control elementPush button
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitBolt connection
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Degree of protection (IP), front sideIP30
Width888mm
Height371mm
Depth270mm
Width in number of modular spacings-
