Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as maintenance-/service switchNo
Version as safety switchNo
Version as emergency stop installationNo
Version as reversing switchNo
Rated permanent current Iu2500A
Number of switches0
Rated operating voltage690 - 690V
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-23, 400 V2500A
Rated permanent current at AC-21, 400 V2500A
Rated operation power at AC-3, 400 V-kW
Rated short-time withstand current lcw85kA
Switching power at 400 V-kW
Rated operation power at AC-23, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Version as main switchYes
Number of poles4
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Motor drive optionalYes
Voltage release optionalYes
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Colour control elementOther
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Suitable for floor mountingNo
Width407mm
Device constructionBuilt-in device slide-in technique (withdrawable)
InterlockableYes
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP30
Type of control elementPush button
Height425mm
Width in number of modular spacings-
Depth383mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

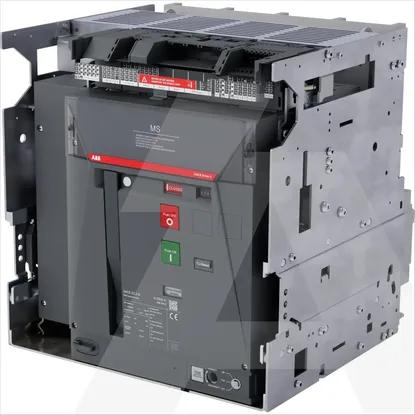

1SDA126032R1 | E2.3H/MS25004pWMP
