Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated voltage690 - 690V
Rated permanent current Iu4000A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
Overload release current setting1600.0 - 4000A
Adjustment range short-term delayed short-circuit release- - -A
Adjustment range undelayed short-circuit release6000.0 - 60000A
Power loss743W
Device constructionBuilt-in device slide-in technique (withdrawable)
Integrated earth fault protectionNo
Type of electrical connection of main circuitConnection at separate chassis part
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact4
With integrated under voltage releaseNo
Number of auxiliary contacts as normally closed contact0
With switched-off indicatorYes
Position of connection for main current circuitConnection at separate chassis part
Type of control elementPush button
Motor drive optionalYes
Complete device with protection unitYes
Degree of protection (IP)IP30
Motor drive integratedNo
Number of poles4
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

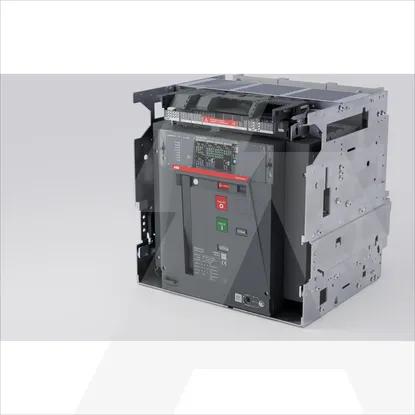

1SDA126070R1 | E4.3/MT4000MP4pEarthUP
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated voltage
690 .. 690V
Rated permanent current Iu
4000A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
-kA
Overload release current setting
1600.0 .. 4000A
Adjustment range short-term delayed short-circuit release
- .. -A
Adjustment range undelayed short-circuit release
6000.0 .. 60000A
Power loss
743W
Device construction
Built-in device slide-in technique (withdrawable)
Integrated earth fault protection
Type of electrical connection of main circuit
Connection at separate chassis part
Suitable for DIN rail (top hat rail) mounting
DIN rail (top hat rail) mounting optional
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
4
With integrated under voltage release
Number of auxiliary contacts as normally closed contact
0
With switched-off indicator
Position of connection for main current circuit
Connection at separate chassis part
Type of control element
Push button
Motor drive optional
Complete device with protection unit
Degree of protection (IP)
IP30
Motor drive integrated
Number of poles
4
