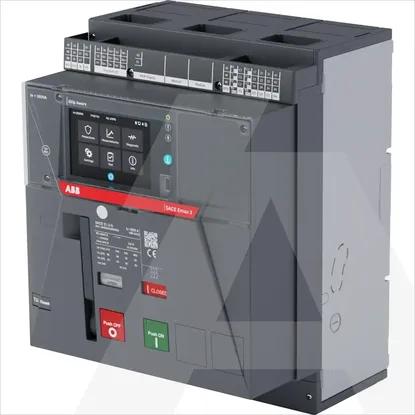

1SDA128807R1 | E1.3N800EkipAwareLSIG3pFF
Code: 2071028
ManufacturerABB
Catalog number1SDA128807R1
TypePower circuit-breaker for trafo/generator/installation protection
EAN code8056221304368
Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated voltage690 - 690V
Rated permanent current Iu800A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz66kA
Overload release current setting320.0 - 800A
Adjustment range short-term delayed short-circuit release480.0 - 8000A
Power loss50W
Adjustment range undelayed short-circuit release1200.0 - 12000A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionYes
Type of electrical connection of main circuitBolt connection
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as normally closed contact0
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as change-over contact4
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
With switched-off indicatorYes
Complete device with protection unitYes
Number of poles3
Position of connection for main current circuitBack side
Degree of protection (IP)IP30
Type of control elementPush button
Motor drive optionalYes
Motor drive integratedNo
