Details

  • •Low-voltage industrial components

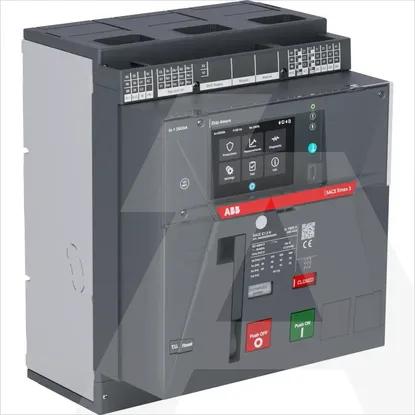

  • •Power circuit-breaker for trafo/generator/installation protection
  • •Minimum order quantity: 1 pcs
  • •ABB

Technical specifications

Rated voltage690 - 690V
Rated permanent current Iu1000A
Overload release current setting400 - 1000A
Adjustment range short-term delayed short-circuit release600 - 10000A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz66kA
Device constructionBuilt-in device fixed built-in technique
Power loss78W
Adjustment range undelayed short-circuit release1500 - 15000A
DIN rail (top hat rail) mounting optionalNo
Type of electrical connection of main circuitBolt connection
With switched-off indicatorYes
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact4
Integrated earth fault protectionYes
With integrated under voltage releaseNo
Number of auxiliary contacts as normally open contact0
Suitable for DIN rail (top hat rail) mountingNo
Type of control elementPush button
Complete device with protection unitYes
Motor drive integratedNo
Position of connection for main current circuitBack side
Degree of protection (IP)IP30
Motor drive optionalYes
Number of poles3
