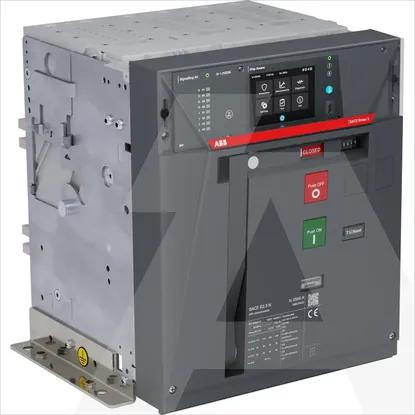

1SDA128826R1 | E2.3B1600EkipAwareLSIG3pFHR
Code: 2071047
ManufacturerABB
Catalog number1SDA128826R1
TypePower circuit-breaker for trafo/generator/installation protection
EAN code8056221304559
Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu1600A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz42kA
Adjustment range undelayed short-circuit release2400.0 - 24000A
Device constructionBuilt-in device fixed built-in technique
Overload release current setting640.0 - 1600A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact4
Adjustment range short-term delayed short-circuit release960.0 - 16000A
Integrated earth fault protectionYes
DIN rail (top hat rail) mounting optionalNo
Suitable for DIN rail (top hat rail) mountingNo
Power loss136W
Type of electrical connection of main circuitBolt connection
Rated voltage690 - 690V
With integrated under voltage releaseNo
With switched-off indicatorYes
Number of auxiliary contacts as normally open contact0
Number of poles3
Position of connection for main current circuitBack side
Complete device with protection unitYes
Type of control elementPush button
Degree of protection (IP)IP30
Motor drive integratedNo
Motor drive optionalYes
