Details

  • •Low-voltage industrial components

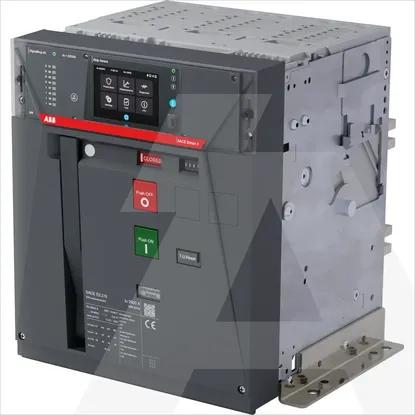

  • •Power circuit-breaker for trafo/generator/installation protection
  • •Minimum order quantity: 1 pcs
  • •ABB

Technical specifications

Rated voltage690 - 690V
Overload release current setting1000 - 2500A
Rated permanent current Iu2500A
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalNo
Adjustment range short-term delayed short-circuit release1500 - 25000A
Adjustment range undelayed short-circuit release3750 - 37500A
Power loss267W
Suitable for DIN rail (top hat rail) mountingNo
With integrated under voltage releaseNo
Integrated earth fault protectionYes
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact4
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz100kA
With switched-off indicatorYes
Type of electrical connection of main circuitBolt connection
Position of connection for main current circuitBack side
Number of poles3
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30
Complete device with protection unitYes
Type of control elementPush button
