Details

  • •Low-voltage industrial components

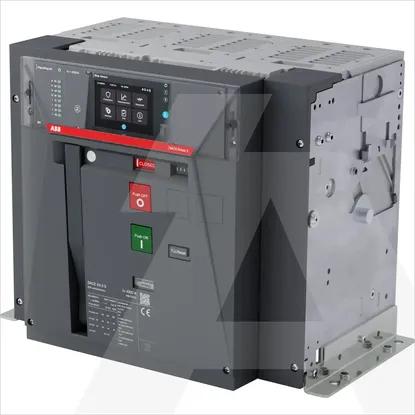

  • •Power circuit-breaker for trafo/generator/installation protection
  • •Minimum order quantity: 1 pcs
  • •ABB

Technical specifications

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz100kA
Rated voltage690 - 690V
Adjustment range undelayed short-circuit release4800 - 48000A
Power loss425W
Overload release current setting1280 - 3200A
Adjustment range short-term delayed short-circuit release1920 - 32000A
Device constructionBuilt-in device fixed built-in technique
Rated permanent current Iu3200A
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as change-over contact4
DIN rail (top hat rail) mounting optionalNo
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally closed contact0
With integrated under voltage releaseNo
Number of auxiliary contacts as normally open contact0
Integrated earth fault protectionYes
With switched-off indicatorYes
Type of control elementPush button
Number of poles3
Motor drive optionalYes
Position of connection for main current circuitBack side
Complete device with protection unitYes
Degree of protection (IP)IP30
Motor drive integratedNo
