Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Adjustment range undelayed short-circuit release2400.0 - 24000A
Integrated earth fault protectionYes
Rated permanent current Iu1600A
Rated voltage690 - 690V
Power loss201W
Overload release current setting640.0 - 1600A
Number of auxiliary contacts as change-over contact4
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Number of auxiliary contacts as normally closed contact0
Device constructionBuilt-in device fixed built-in technique
Type of electrical connection of main circuitBolt connection
Adjustment range short-term delayed short-circuit release960.0 - 16000A
With integrated under voltage releaseNo
With switched-off indicatorYes
DIN rail (top hat rail) mounting optionalNo
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as normally open contact0
Position of connection for main current circuitBack side
Type of control elementPush button
Number of poles4
Complete device with protection unitYes
Motor drive optionalYes
Degree of protection (IP)IP30
Motor drive integratedNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

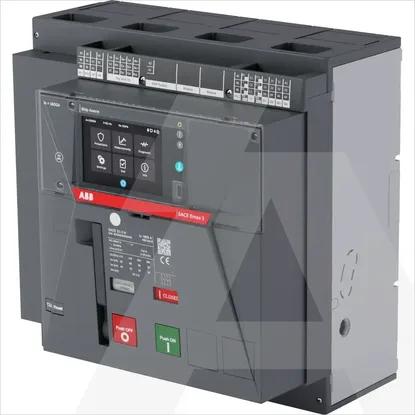

1SDA128870R1 | E1.3C1600EkipAwareLSIG4pFF
