Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu1600A
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz66kA
Power loss201W
Adjustment range undelayed short-circuit release2400.0 - 24000A
Device constructionBuilt-in device fixed built-in technique
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact4
With integrated under voltage releaseNo
With switched-off indicatorYes
Adjustment range short-term delayed short-circuit release960.0 - 16000A
Integrated earth fault protectionYes
Overload release current setting640.0 - 1600A
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Motor drive integratedNo
Position of connection for main current circuitBack side
Number of poles4
Type of control elementPush button
Complete device with protection unitYes
Motor drive optionalYes
Degree of protection (IP)IP30
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

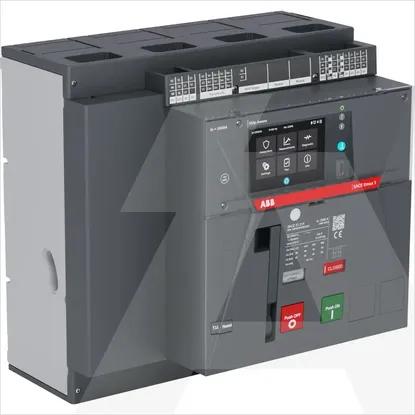

1SDA128871R1 | E1.3N1600EkipAwareLSIG4pFF
