Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu1250A
Rated voltage690 - 690V
Adjustment range short-term delayed short-circuit release750.0 - 12500A
Power loss83W
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz85kA
Adjustment range undelayed short-circuit release1875.0 - 18750A
Suitable for DIN rail (top hat rail) mountingNo
Overload release current setting500.0 - 1250A
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally open contact0
DIN rail (top hat rail) mounting optionalNo
With integrated under voltage releaseNo
Integrated earth fault protectionYes
Number of auxiliary contacts as change-over contact4
With switched-off indicatorYes
Device constructionBuilt-in device fixed built-in technique
Number of poles4
Type of control elementPush button
Complete device with protection unitYes
Degree of protection (IP)IP30
Position of connection for main current circuitBack side
Motor drive integratedNo
Motor drive optionalYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

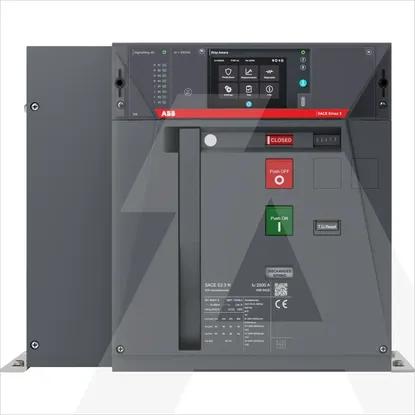

1SDA128879R1 | E2.3S1250EkipAwareLSIG4pFHR
