Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu3200A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz100kA
Rated voltage690 - 690V
Adjustment range short-term delayed short-circuit release1920.0 - 32000A
Overload release current setting1280.0 - 3200A
Power loss425W
Adjustment range undelayed short-circuit release4800.0 - 48000A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionYes
Type of electrical connection of main circuitBolt connection
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally closed contact0
With integrated under voltage releaseNo
Number of auxiliary contacts as change-over contact4
Number of auxiliary contacts as normally open contact0
With switched-off indicatorYes
Complete device with protection unitYes
Motor drive optionalYes
Motor drive integratedNo
Type of control elementPush button
Position of connection for main current circuitBack side
Degree of protection (IP)IP30
Number of poles4
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

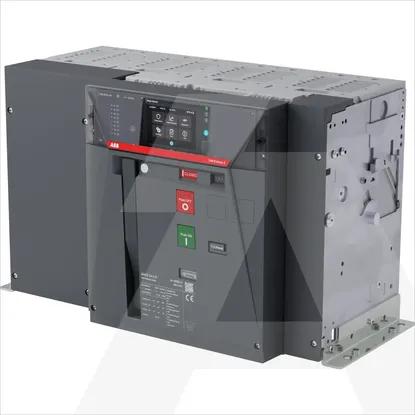

1SDA128896R1 | E4.3H3200EkipAwareLSIG4pFHR
