Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu5000A
Integrated earth fault protectionYes
Type of electrical connection of main circuitBolt connection
Overload release current setting2000.0 - 5000A
Adjustment range short-term delayed short-circuit release3000.0 - 50000A
Rated voltage690 - 690V
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range undelayed short-circuit release7500.0 - 75000A
DIN rail (top hat rail) mounting optionalNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz100kA
Number of auxiliary contacts as normally closed contact0
With switched-off indicatorYes
Power loss483W
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
Device constructionBuilt-in device fixed built-in technique
Number of auxiliary contacts as change-over contact4
Number of poles4
Complete device with protection unitYes
Position of connection for main current circuitBack side
Type of control elementPush button
Degree of protection (IP)IP30
Motor drive optionalYes
Motor drive integratedNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

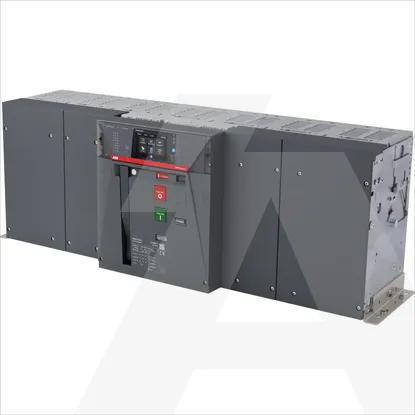

1SDA128905R1 | E6.3H5000EkipAwareLSIG4pFHR
