Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Overload release current setting2520.0 - 6300A
Power loss767W
Adjustment range undelayed short-circuit release9450.0 - 94500A
DIN rail (top hat rail) mounting optionalNo
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as change-over contact4
Rated permanent current Iu6300A
Rated voltage690 - 690V
Device constructionBuilt-in device fixed built-in technique
Adjustment range short-term delayed short-circuit release3780.0 - 63000A
Type of electrical connection of main circuitBolt connection
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz100kA
Integrated earth fault protectionYes
Number of auxiliary contacts as normally open contact0
With switched-off indicatorYes
Number of auxiliary contacts as normally closed contact0
With integrated under voltage releaseNo
Number of poles4
Complete device with protection unitYes
Type of control elementPush button
Motor drive optionalYes
Position of connection for main current circuitBack side
Motor drive integratedNo
Degree of protection (IP)IP30
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

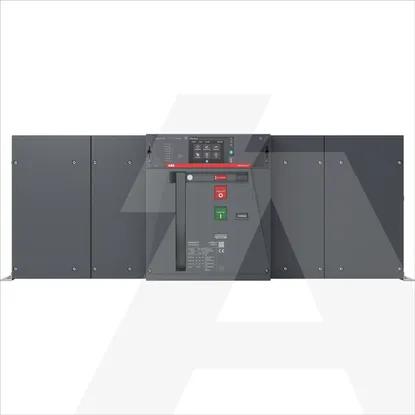

1SDA128917R1 | E6.3H/f6300EkipAwareLSIG4pFHR
