Details

  • •Low-voltage industrial components

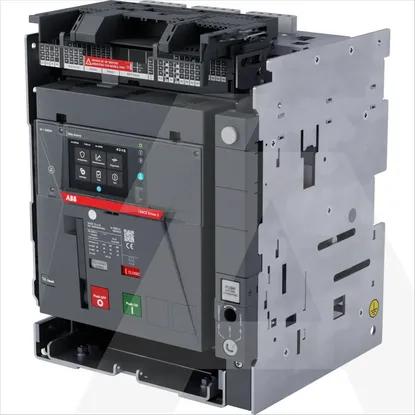

  • •Power circuit-breaker for trafo/generator/installation protection
  • •Minimum order quantity: 1 pcs
  • •ABB

Technical specifications

Rated permanent current Iu1250A
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz66kA
Overload release current setting500 - 1250A
Adjustment range short-term delayed short-circuit release750 - 12500A
Power loss244W
Adjustment range undelayed short-circuit release1875 - 18750A
Device constructionBuilt-in device slide-in technique (withdrawable)
Integrated earth fault protectionYes
Type of electrical connection of main circuitConnection at separate chassis part
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as change-over contact4
With switched-off indicatorYes
With integrated under voltage releaseNo
Position of connection for main current circuitConnection at separate chassis part
Number of poles3
Complete device with protection unitYes
Type of control elementPush button
Motor drive optionalYes
Degree of protection (IP)IP30
Motor drive integratedNo
