Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Adjustment range short-term delayed short-circuit release1200.0 - 20000A
Overload release current setting800.0 - 2000A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz85kA
Adjustment range undelayed short-circuit release3000.0 - 30000A
Power loss450W
Rated permanent current Iu2000A
Type of electrical connection of main circuitConnection at separate chassis part
Number of auxiliary contacts as normally closed contact0
Integrated earth fault protectionYes
DIN rail (top hat rail) mounting optionalNo
Rated voltage690 - 690V
Suitable for DIN rail (top hat rail) mountingNo
Device constructionBuilt-in device slide-in technique (withdrawable)
With integrated under voltage releaseNo
Number of auxiliary contacts as change-over contact4
With switched-off indicatorYes
Number of auxiliary contacts as normally open contact0
Number of poles3
Type of control elementPush button
Position of connection for main current circuitConnection at separate chassis part
Complete device with protection unitYes
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

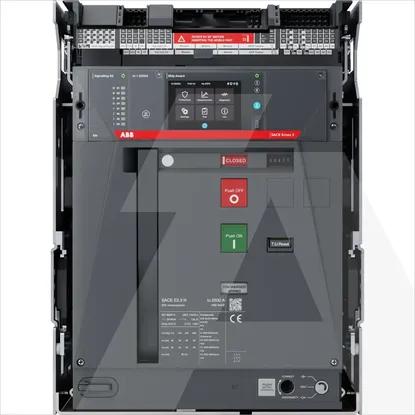

1SDA128951R1 | E2.3S2000EkipAwareLSIG3pWMP
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Adjustment range short-term delayed short-circuit release
1200.0 .. 20000A
Overload release current setting
800.0 .. 2000A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
85kA
Adjustment range undelayed short-circuit release
3000.0 .. 30000A
Power loss
450W
Rated permanent current Iu
2000A
Type of electrical connection of main circuit
Connection at separate chassis part
Number of auxiliary contacts as normally closed contact
0
Integrated earth fault protection
DIN rail (top hat rail) mounting optional
Rated voltage
690 .. 690V
Suitable for DIN rail (top hat rail) mounting
Device construction
Built-in device slide-in technique (withdrawable)
With integrated under voltage release
Number of auxiliary contacts as change-over contact
4
With switched-off indicator
Number of auxiliary contacts as normally open contact
0
Number of poles
3
Type of control element
Push button
Position of connection for main current circuit
Connection at separate chassis part
Complete device with protection unit
Motor drive integrated
Motor drive optional
Degree of protection (IP)
IP30
