Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu2000A
Number of auxiliary contacts as change-over contact4
Device constructionBuilt-in device slide-in technique (withdrawable)
Power loss450W
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz100kA
Integrated earth fault protectionYes
Overload release current setting800.0 - 2000A
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range undelayed short-circuit release3000.0 - 30000A
With integrated under voltage releaseNo
Number of auxiliary contacts as normally closed contact0
Adjustment range short-term delayed short-circuit release1200.0 - 20000A
Type of electrical connection of main circuitConnection at separate chassis part
With switched-off indicatorYes
Number of auxiliary contacts as normally open contact0
DIN rail (top hat rail) mounting optionalNo
Number of poles3
Position of connection for main current circuitConnection at separate chassis part
Motor drive integratedNo
Complete device with protection unitYes
Type of control elementPush button
Degree of protection (IP)IP30
Motor drive optionalYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

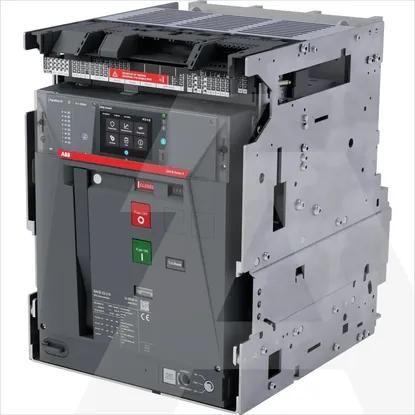

1SDA128952R1 | E2.3H2000EkipAwareLSIG3pWMP
