Details
- •Low-voltage industrial components

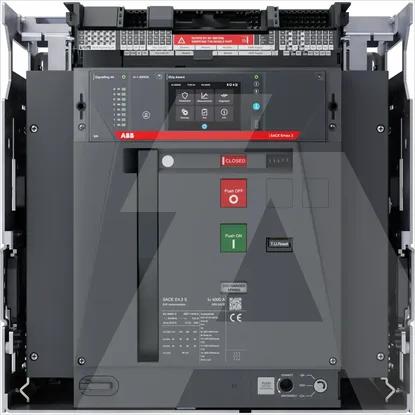

- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu3200A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz85kA
Overload release current setting1280.0 - 3200A
Device constructionBuilt-in device slide-in technique (withdrawable)
Adjustment range short-term delayed short-circuit release1920.0 - 32000A
Rated voltage690 - 690V
Adjustment range undelayed short-circuit release4800.0 - 48000A
Power loss743W
Integrated earth fault protectionYes
Suitable for DIN rail (top hat rail) mountingNo
Type of electrical connection of main circuitConnection at separate chassis part
Number of auxiliary contacts as normally open contact0
DIN rail (top hat rail) mounting optionalNo
With integrated under voltage releaseNo
With switched-off indicatorYes
Number of auxiliary contacts as change-over contact4
Number of auxiliary contacts as normally closed contact0
Position of connection for main current circuitConnection at separate chassis part
Type of control elementPush button
Complete device with protection unitYes
Number of poles3
Motor drive optionalYes
Motor drive integratedNo
Degree of protection (IP)IP30
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SDA128959R1 | E4.3S3200EkipAwareLSIG3pWMP
