Details

  • •Low-voltage industrial components

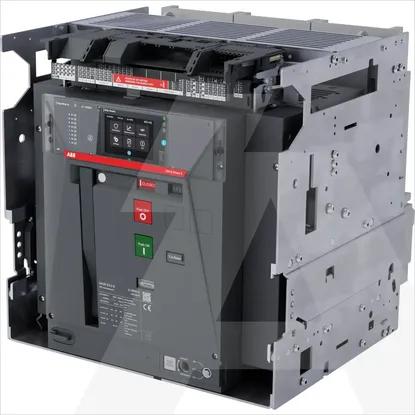

  • •Power circuit-breaker for trafo/generator/installation protection
  • •1 KOM
  • •ABB

Technical specifications

Rated permanent current Iu4000A
Rated voltage690 - 690V
Number of auxiliary contacts as change-over contact4
Overload release current setting1600 - 4000A
With switched-off indicatorYes
Device constructionBuilt-in device slide-in technique (withdrawable)
Number of auxiliary contacts as normally open contact0
Adjustment range undelayed short-circuit release6000 - 60000A
Integrated earth fault protectionYes
Adjustment range short-term delayed short-circuit release2400 - 40000A
Power loss900W
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz100kA
Type of electrical connection of main circuitConnection at separate chassis part
DIN rail (top hat rail) mounting optionalNo
With integrated under voltage releaseNo
Number of auxiliary contacts as normally closed contact0
Suitable for DIN rail (top hat rail) mountingNo
Position of connection for main current circuitConnection at separate chassis part
Type of control elementPush button
Number of poles3
Motor drive integratedNo
Complete device with protection unitYes
Degree of protection (IP)IP30
Motor drive optionalYes
