Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu5000A
Adjustment range short-term delayed short-circuit release3000.0 - 50000A
Device constructionBuilt-in device slide-in technique (withdrawable)
Power loss850W
Overload release current setting2000.0 - 5000A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz100kA
Suitable for DIN rail (top hat rail) mountingNo
Rated voltage690 - 690V
With integrated under voltage releaseNo
Integrated earth fault protectionYes
With switched-off indicatorYes
Adjustment range undelayed short-circuit release7500.0 - 75000A
Number of auxiliary contacts as change-over contact4
Type of electrical connection of main circuitConnection at separate chassis part
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
DIN rail (top hat rail) mounting optionalNo
Type of control elementPush button
Complete device with protection unitYes
Motor drive integratedNo
Number of poles3
Position of connection for main current circuitConnection at separate chassis part
Degree of protection (IP)IP30
Motor drive optionalYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

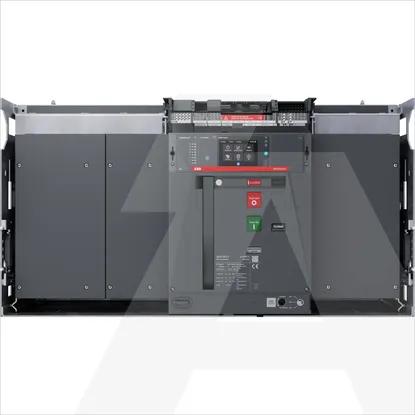

1SDA128969R1 | E6.3H5000EkipAwareLSIG3pWMP
