Details

  • •Low-voltage industrial components
  • •Power circuit-breaker for trafo/generator/installation protection
  • •Minimum order quantity: 1 pcs
  • •ABB

Technical specifications

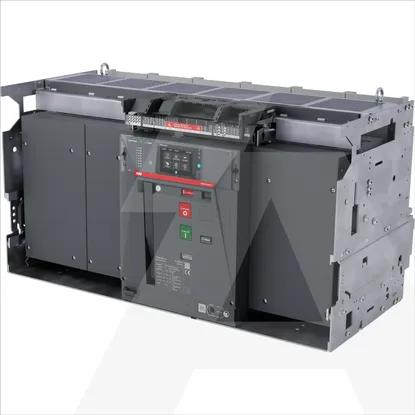

Device constructionBuilt-in device slide-in technique (withdrawable)
Adjustment range short-term delayed short-circuit release3000 - 50000A
Integrated earth fault protectionYes
Number of auxiliary contacts as normally closed contact0
Power loss850W
Rated permanent current Iu5000A
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz150kA
Overload release current setting2000 - 5000A
DIN rail (top hat rail) mounting optionalNo
Adjustment range undelayed short-circuit release7500 - 75000A
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitConnection at separate chassis part
Number of auxiliary contacts as change-over contact4
With switched-off indicatorYes
With integrated under voltage releaseNo
Suitable for DIN rail (top hat rail) mountingNo
Complete device with protection unitYes
Type of control elementPush button
Number of poles3
Degree of protection (IP)IP30
Motor drive integratedNo
Motor drive optionalYes
Position of connection for main current circuitConnection at separate chassis part
