Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu800A
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz85kA
Adjustment range short-term delayed short-circuit release480.0 - 8000A
Power loss72W
Adjustment range undelayed short-circuit release1200.0 - 12000A
Overload release current setting320.0 - 800A
Integrated earth fault protectionYes
Device constructionBuilt-in device slide-in technique (withdrawable)
Type of electrical connection of main circuitConnection at separate chassis part
DIN rail (top hat rail) mounting optionalNo
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
With switched-off indicatorYes
Number of auxiliary contacts as change-over contact4
With integrated under voltage releaseNo
Number of poles4
Position of connection for main current circuitConnection at separate chassis part
Type of control elementPush button
Motor drive integratedNo
Complete device with protection unitYes
Degree of protection (IP)IP30
Motor drive optionalYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

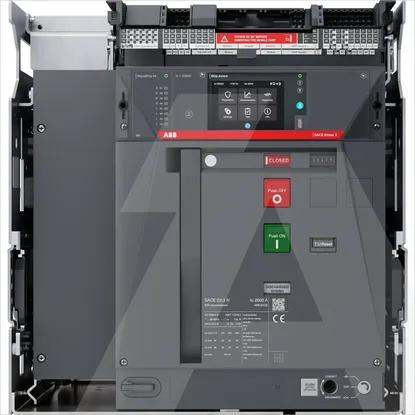

1SDA128992R1 | E2.3S800EkipAwareLSIG4pWMP
