Details

  • •Low-voltage industrial components

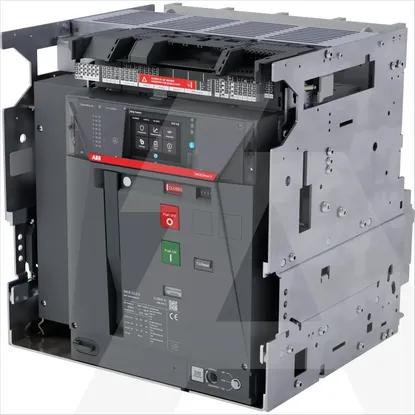

  • •Power circuit-breaker for trafo/generator/installation protection
  • •Minimum order quantity: 1 pcs
  • •ABB

Technical specifications

Overload release current setting1000 - 2500A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz100kA
Adjustment range short-term delayed short-circuit release1500 - 25000A
Rated permanent current Iu2500A
Integrated earth fault protectionYes
Power loss550W
Adjustment range undelayed short-circuit release3750 - 37500A
Device constructionBuilt-in device slide-in technique (withdrawable)
Rated voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as normally open contact0
DIN rail (top hat rail) mounting optionalNo
With integrated under voltage releaseNo
Number of auxiliary contacts as change-over contact4
With switched-off indicatorYes
Type of electrical connection of main circuitConnection at separate chassis part
Position of connection for main current circuitConnection at separate chassis part
Degree of protection (IP)IP30
Complete device with protection unitYes
Motor drive optionalYes
Number of poles4
Type of control elementPush button
Motor drive integratedNo
