Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Power loss850W
Device constructionBuilt-in device slide-in technique (withdrawable)
Integrated earth fault protectionYes
Suitable for DIN rail (top hat rail) mountingNo
Type of electrical connection of main circuitConnection at separate chassis part
DIN rail (top hat rail) mounting optionalNo
Rated permanent current Iu5000A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
Rated voltage690 - 690V
Overload release current setting2000.0 - 5000A
Adjustment range short-term delayed short-circuit release3000.0 - 50000A
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Adjustment range undelayed short-circuit release7500.0 - 75000A
Number of auxiliary contacts as change-over contact4
With integrated under voltage releaseNo
With switched-off indicatorYes
Number of poles4
Position of connection for main current circuitConnection at separate chassis part
Motor drive optionalYes
Motor drive integratedNo
Degree of protection (IP)IP30
Complete device with protection unitYes
Type of control elementPush button
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

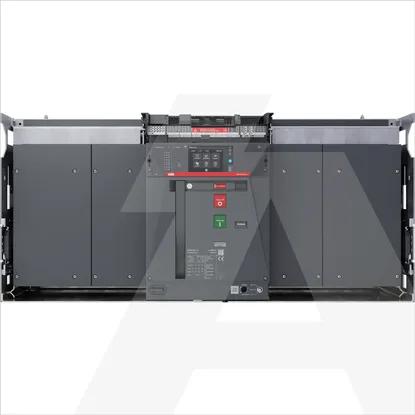

1SDA129026R1 | E6.3X5000EkipAwareLSIG4pWMP
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Power loss
850W
Device construction
Built-in device slide-in technique (withdrawable)
Integrated earth fault protection
Suitable for DIN rail (top hat rail) mounting
Type of electrical connection of main circuit
Connection at separate chassis part
DIN rail (top hat rail) mounting optional
Rated permanent current Iu
5000A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
-kA
Rated voltage
690 .. 690V
Overload release current setting
2000.0 .. 5000A
Adjustment range short-term delayed short-circuit release
3000.0 .. 50000A
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Adjustment range undelayed short-circuit release
7500.0 .. 75000A
Number of auxiliary contacts as change-over contact
4
With integrated under voltage release
With switched-off indicator
Number of poles
4
Position of connection for main current circuit
Connection at separate chassis part
Motor drive optional
Motor drive integrated
Degree of protection (IP)
IP30
Complete device with protection unit
Type of control element
Push button
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
