Details
- •Low-voltage industrial components

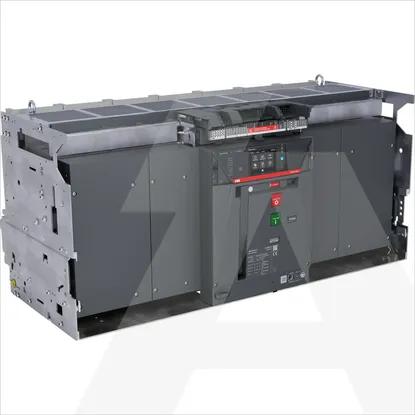

- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Overload release current setting1600.0 - 4000A
Rated permanent current Iu4000A
Power loss544W
Rated voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact4
Integrated earth fault protectionYes
Device constructionBuilt-in device slide-in technique (withdrawable)
Adjustment range undelayed short-circuit release6000.0 - 60000A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
Number of auxiliary contacts as normally open contact0
DIN rail (top hat rail) mounting optionalNo
Type of electrical connection of main circuitConnection at separate chassis part
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range short-term delayed short-circuit release2400.0 - 40000A
With switched-off indicatorYes
With integrated under voltage releaseNo
Position of connection for main current circuitConnection at separate chassis part
Motor drive optionalYes
Complete device with protection unitYes
Number of poles4
Motor drive integratedNo
Degree of protection (IP)IP30
Type of control elementPush button
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SDA129032R1 | E6.3X/f4000EkipAwareLSIG4pWMP
