Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz85kA
With switched-off indicatorYes
Overload release current setting100.0 - 250A
DIN rail (top hat rail) mounting optionalNo
Integrated earth fault protectionYes
Rated permanent current Iu250A
Power loss50W
Number of auxiliary contacts as change-over contact4
Type of electrical connection of main circuitBolt connection
Adjustment range undelayed short-circuit release375.0 - 3750A
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range short-term delayed short-circuit release150.0 - 2500A
Device constructionBuilt-in device fixed built-in technique
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
Motor drive integratedNo
Number of poles4
Position of connection for main current circuitBack side
Type of control elementPush button
Motor drive optionalYes
Complete device with protection unitYes
Degree of protection (IP)IP30
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

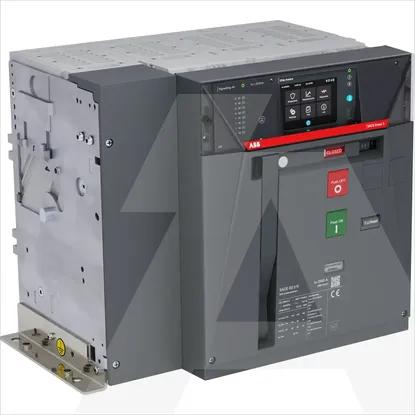

1SDA129040R1 | E2.3S250EkipAwareLSIG4pFHR
