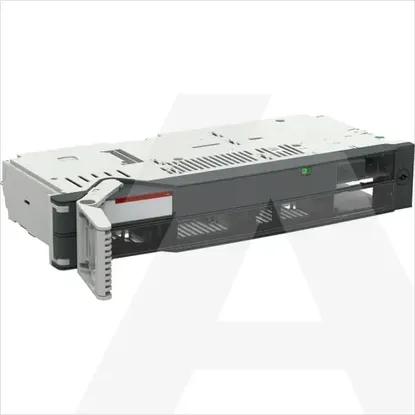

1SEP204481R7501 | XRG1-50/10-3P-EFM
Code: 2071289
ManufacturerABB
Catalog number1SEP204481R7501
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code3800161650642
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Max. rated operation voltage Ue AC690V
Version as main switchYes
Equipped with connectorsNo
Rated short-time withstand current lcw-kA
Version as safety switchNo
Suitable for fusesNH1
With error protectionNo
Rated permanent current Iu250A
Cable entrySide
Rated operation power at AC-23, 400 V-kW
Suitable for floor mountingNo
Number of poles3
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq120kA
Suitable for busbar mountingYes
Suitable for front mountingNo
Type of control elementOther
Position control elementFront side
Motor drive integratedNo
Motor drive optionalNo
Degree of protection (IP), front sideIP41
Version as emergency stop installationNo
