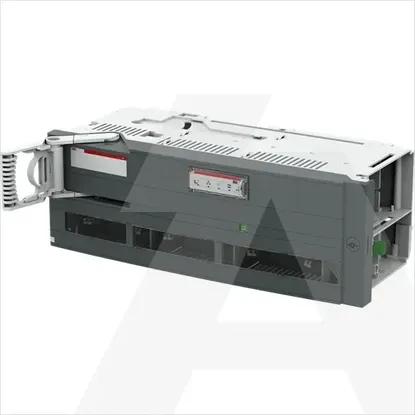

1SEP204482R3516 | XRG2-185/10-3P-ITS2.1
Code: 2071290
ManufacturerABB
Catalog number1SEP204482R3516
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code3800161651052
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as main switchYes
Version as safety switchNo
Conditioned rated short-circuit current Iq120kA
Suitable for fusesNH2
Max. rated operation voltage Ue AC690V
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw-kA
Number of poles3
Rated permanent current Iu400A
With error protectionNo
Type of electrical connection of main circuitBolt connection
Suitable for busbar mountingYes
Cable entrySide
Type of control elementOther
Suitable for front mountingNo
Equipped with connectorsNo
Suitable for floor mountingNo
Position control elementFront side
Motor drive integratedNo
Version as emergency stop installationNo
Motor drive optionalNo
Degree of protection (IP), front sideIP41
