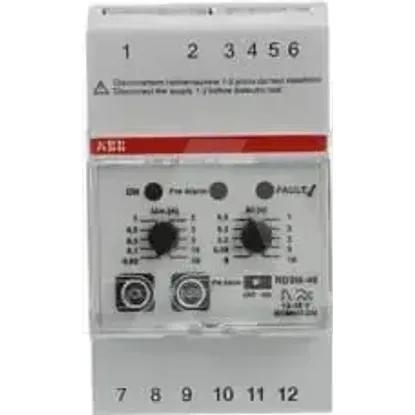

2CSJ202001R0001 | RD3M-48 - Residual Current Monitor
Code: 2071721
ManufacturerABB
Catalog number2CSJ202001R0001
TypeResidual current monitoring relay
EAN code8012542733935
Details
- •Relays
- •Residual current monitoring relay
- •1 KOM
- •ABB
Technical specifications
FunctionFor mixed system
With detachable clampsNo
Max. permitted delay-on energization time10s
Response value amperage 1500 - 500mA
Response value amperage 2- - -mA
Error registration possibleNo
Min. adjustable delay-on energization time0s
Indication of difference currentYes
Number of contacts as change-over contact1
Number of contacts as normally open contact-
Number of contacts as normally closed contact-
Height85mm
Width52.8mm
Depth65mm
Type of electric connectionScrew connection
Rated control supply voltage Us at AC 60HZ48 - 48V
Voltage type for actuatingAC/DC
Rated control supply voltage Us at DC48 - 48V
Rated control supply voltage Us at AC 50HZ48 - 48V
Rated voltage48 - 48V
Rated frequency50 - 60Hz
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CSJ202001R0001 | RD3M-48 - Residual Current Monitor
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Residual current monitoring relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Function
For mixed system
With detachable clamps
Max. permitted delay-on energization time
10s
Response value amperage 1
500 .. 500mA
Response value amperage 2
- .. -mA
Error registration possible
Min. adjustable delay-on energization time
0s
Indication of difference current
Number of contacts as change-over contact
1
Number of contacts as normally open contact
-
Number of contacts as normally closed contact
-
Height
85mm
Width
52.8mm
Depth
65mm
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 60HZ
48 .. 48V
Voltage type for actuating
AC/DC
Rated control supply voltage Us at DC
48 .. 48V
Rated control supply voltage Us at AC 50HZ
48 .. 48V
Rated voltage
48 .. 48V
Rated frequency
50 .. 60Hz
