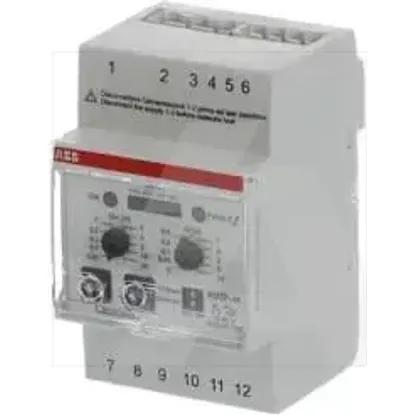

2CSJ203001R0001 | RESIDUAL CURRENT MONITOR, RD3P-48
Code: 2071723
ManufacturerABB
Catalog number2CSJ203001R0001
TypeResidual current monitoring relay
EAN code8012542734734
Details
- •Relays
- •Residual current monitoring relay
- •1 KOM
- •ABB
Technical specifications
External power supply requiredNo
With detachable clampsNo
FunctionFor mixed system
Supply voltage DC- - -V
Supply voltage AC 50 Hz- - -V
Rated operation frequency- - -Hz
Supply voltage AC 60 Hz- - -V
Min. adjustable delay-on energization time0s
Voltage measuring range- - -V
Current measuring range- - -mA
Indication of difference currentYes
Response value amperage 1500 - 500mA
Max. permitted delay-on energization time10s
Response value amperage 2- - -mA
Error registration possibleNo
Number of contacts as normally closed contact-
Number of contacts as normally open contact-
Operating voltage at AC 60 Hz- - -V
Operating voltage at AC 50 Hz- - -V
Width52.8mm
Operating voltage at DC- - -V
Number of contacts as change-over contact-
Depth65mm
Height85.000mm
Rated switch current-A
