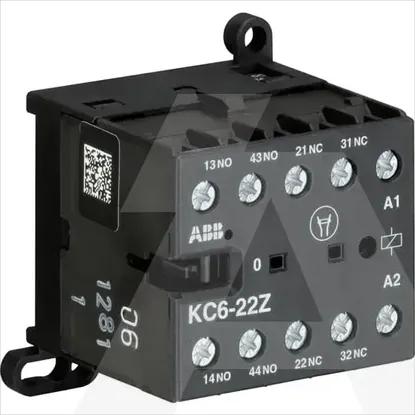

GJH1213001R5224 | KC6-22Z-2.4-54
Code: 2071933
ManufacturerABB
Catalog numberGJH1213001R5224
TypeContactor relay
CategoryContactor relay
EAN code4013614153686
Details
- •Low-voltage industrial components
- •Contactor relay
- •1 KOM
- •ABB
Technical specifications
Rated control supply voltage Us at AC 50HZ- - -V
InterfaceNo
Rated operation current4A
Rated control supply voltage Us at DC36 - 65V
Rated control supply voltage Us at AC 60HZ- - -V
Voltage type for actuatingDC
With LED indicationNo
Mounting methodDIN rail
Number of auxiliary contacts as normally open contact, leading0
Number of auxiliary contacts as normally closed contact2
Operating voltage at AC 50 Hz690 - 690V
Rated operation current Ie, 400 V3A
Suitable for manual operationNo
Number of auxiliary contacts as normally open contact2
Number of auxiliary contacts as change-over contact0
Operating voltage at AC 60 Hz690 - 690V
Number of auxiliary contacts as normally closed contact, delayed switching0
Connection type auxiliary circuitScrew connection
Operating voltage at DC250 - 250V
Width52.5mm
Height57.5mm
Depth46.5mm
Voltage type (operating voltage)DC
Rated switch current4A
