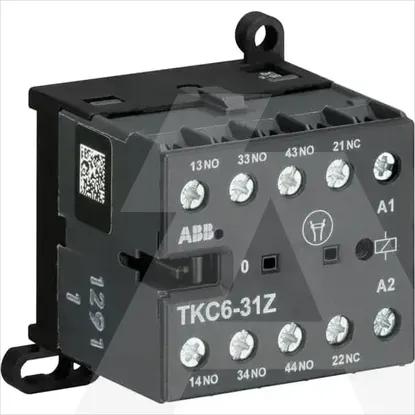

GJH1213061R6318 | TKC6-31Z-68
Code: 2071941
ManufacturerABB
Catalog numberGJH1213061R6318
TypeContactor relay
CategoryContactor relay
EAN code4013614407215
Details
- •Low-voltage industrial components
- •Contactor relay
- •1 KOM
- •ABB
Technical specifications
Rated control supply voltage Us at AC 50HZ- - -V
Rated operation current4A
Rated control supply voltage Us at DC140 - 260V
Rated operation current Ie, 400 V3A
Rated control supply voltage Us at AC 60HZ- - -V
Mounting methodDIN rail
Suitable for manual operationNo
Voltage type for actuatingDC
Number of auxiliary contacts as normally closed contact1
InterfaceNo
With LED indicationNo
Number of auxiliary contacts as normally open contact, leading0
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact3
Number of auxiliary contacts as normally closed contact, delayed switching0
Operating voltage at AC 50 Hz690 - 690V
Operating voltage at AC 60 Hz690 - 690V
Operating voltage at DC250 - 250V
Connection type auxiliary circuitScrew connection
Voltage type (operating voltage)DC
Rated switch current4A
Width52.5mm
Height57.5mm
Depth46.5mm
