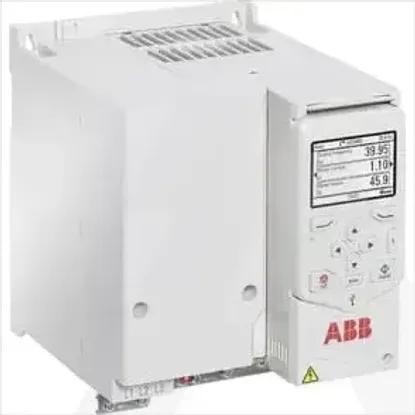

3AXD50000275717 | ACH480-04-026A-4 PN: 11kW, IN: 25A
Code: 2072102
ManufacturerABB
Catalog number3AXD50000275717
TypeFrequency converter =< 1 kV
CategoryFrequency converter =< 1 kV
EAN code6438177541813
Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
Number of phases output3
Max. output frequency599Hz
Nominal output current I2N25A
Max. output at quadratic load at rated output voltage11kW
Relative symmetric net frequency tolerance5%
Max. output at linear load at rated output voltage11kW
Max. output voltage480V
Relative symmetric net voltage tolerance10%
Number of analogue outputs2
Mains voltage380 - 480V
Mains frequency50/60 Hz
Number of phases input3
Number of analogue inputs2
With control elementYes
Application in industrial area permittedYes
Number of digital inputs6
Number of digital outputs3
Supporting protocol for TCP/IPYes
Application in domestic- and commercial area permittedYes
Supporting protocol for PROFIBUSYes
Supporting protocol for CANYes
Supporting protocol for INTERBUSNo
Supporting protocol for ModbusYes
Supporting protocol for ASINo
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetYes
Supporting protocol for SUCONETNo
Supporting protocol for LONYes
Supporting protocol for KNXNo
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyYes
Supporting protocol for SERCOSNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET IOYes
Supporting protocol for other bus systemsYes
Number of interfaces PROFINET0
Supporting protocol for SafetyBUS pNo
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2320
Number of HW-interfaces industrial Ethernet0
Supporting protocol for BACnetYes
Number of HW-interfaces RS-4851
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Number of HW-interfaces USB1
With PC connectionYes
Number of HW-interfaces other2
With optical interfaceNo
Type of converterU converter
4-quadrant operation possibleNo
Degree of protection (IP)IP20
Integrated breaking resistanceNo
Degree of protection (NEMA)Other
Height220mm
Width172mm
Depth208mm
