Details

  • •Circuit breakers and fuses

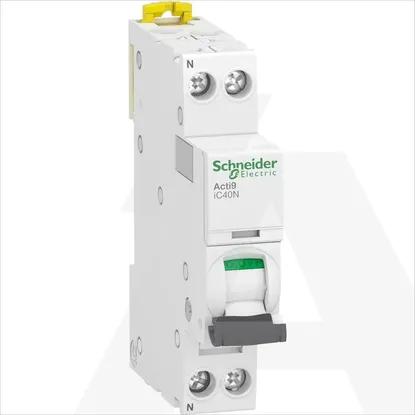

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •SCHNEIDER

Technical specifications

Release characteristicC
Number of protected poles1
Number of poles (total)2
Current limiting class3
Concurrently switching neutral conductorYes
Voltage typeAC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Frequency50 - 60Hz
Over voltage category3
Pollution degree3
Rated current2A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated voltage230V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Built-in depth44mm
Width in number of modular spacings1
Additional equipment possibleYes
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Flush-mounted installationNo
Rated insulation voltage Ui400V
Ambient temperature during operating-25 - 70°C
Connectable conductor cross section multi-wired1 - 10mm²
Connectable conductor cross section solid-core1 - 16mm²
Explosion-proofNo
